QD580 5-axis CNC tool grinder

QD580 is a high-efficiency grinder that is good at making non-standard tools.

It is suitable for producing or grinding various diameters of milling tools, drilling tools, forming tools, etc.

The machine can be equipped with automatic loading and unloading and anticollision system, precision clamping mechanism and innovative tool precision support system.

Product details

QD580 5-axis CNC tool grinder is a high-efficiency grinder that is good at making non-standard tools.

It is suitable for producing or grinding various diameters of milling tools, drilling tools, forming tools, etc.

The machine can be equipped with automatic loading and unloading and anticollision system, precision clamping mechanism and innovative tool precision support system.

Machine Body



Machine Body

Linear axis X, Y, and Z adopt linear guide drive with ball-screw. It is HIWIN brand from Taiwan.

It has a distance between centres of 520 millimeters/540 millimeters and a centre height of 350 millimeters.

The fuselage bases(X carrier, Y carrier, Z carrier, and Z column) are all made of artificial granite, with unmatched thermal stability and excellent vibration absorption.







QD580 Double grinding spindle head(C-axis)



Double grinding spindle head(C-axis)

Equipped with 18KW high powerful precision direct drive grinding head.

Double grinding spindle head can be installed with 4-8 pieces of flange grinding wheels.

It can complete the clamping and grinding of the front, back and end face of the tool at one time.







QD580 workpiece spindle(A-axis)



The workpiece spindle(A-axis)

The rotation spindle A-axis adopts direct-drive conversion.

This machine is equipped with W25 precision holder which matches with SCHAUBLIN collet.

The clamping method of the workpiece can be pneumatic.







QD580 Operation panel



Operation panel

Function keys are integrated into the operator panel for quick configuration of operation.

The display has a touch screen function to assist the operator.

The console is adjustable.







Optional loading



Optional loading

The machine is equipped Nachi robotic arm. The automatic loading and unloading robot system can realize full-automatic production for 24 hours

ModelQD580 5-axis CNC tool grinder
Grinding  tools range (Round bar workpieces)Φ3-32mm
Max. Processing workpiece diameter (disc shaped tool)200mm
Max. processing workpiece length250mm
Max. processing workpiece groove depth20mm
Max. Workpiece weight20Kg
Grinding head Max. Power(electric spindle)24KW
Grinding wheels(CBN/diamond)Φ50~Φ200mm
Grinding head spindle rotation speed(frequency regulation)1000-6000rpm
Vertical lifting stroke of workpiece head frame (Z axis)350mm(-100-250)mm
Workable travel X axis/Y-axisX:520 / Y:540 /Z:350
Linear axis quick travel speed15m/min
Workpiece spindle rotation speed(A-axis)200rpm
Rotation range of A-axis
Taper of main shaft hole of axis AISO50
Pneumatic clamping rangeΦ3~Φ25mm
SCHUNK clamping workpiece rangeΦ6~Φ32mm
Grinding head swing Max rotation speed(C-axis)75rpm
Rotation range of C-axis320°(-225~95°)
Workpiece spindle center height135mm
Workpiece spindle radial runout≤0.005mm
Grinding head spindle radial runout≤0.005mm
Air cylinder clamping force adjusting range800-1000kg
Linear-axis resolving power0.001mm
Rotation axis resolving power0.001°
Cooling workpiece flow60~80L/min
Cooling workpiece oil pressure0.5~0.6MP
VoltageAC 380V 50HZ 3 phase
Total power32 KW
Machine dimensions2200×1600×2400mm
Machine weight5T



Why choose us

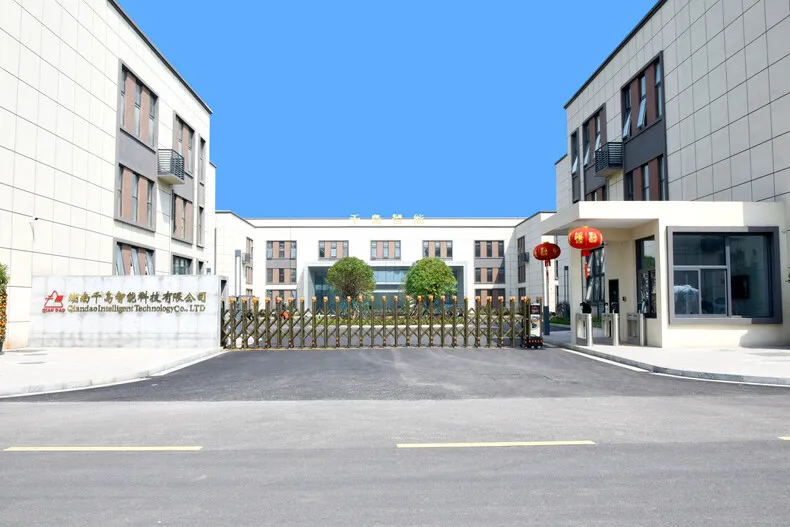

· The factory area exceeds 6000 square meters.
